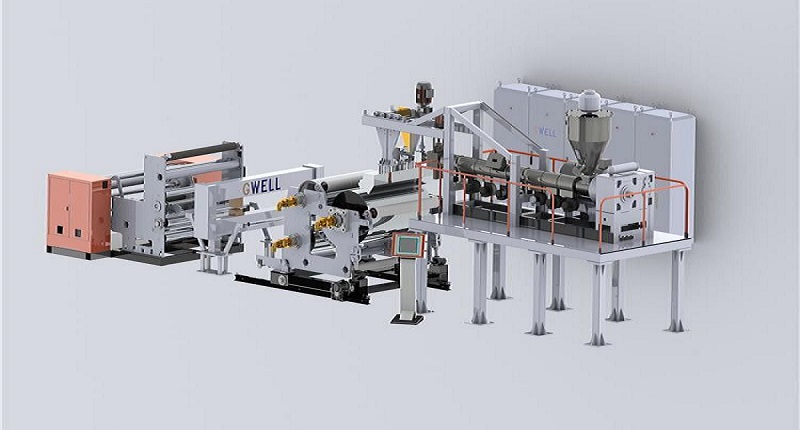

ETFE casting film production line

ETFE casting film production line

ETFE film is one of the fluorinated plastics, which is widely used in various fields due to its excellent light transmittance, self-cleaning, insulation performance, moisture heat resistance, and aging resistance. ETFE fluoroplastic film is prone to thermal decomposition and corrosion of processing equipment and molds during hot processing due to the presence of fluorine elements. Therefore, the processing equipment and process are different from ordinary thermoplastic plastics. This production line adopts specially designed equipment and process technology, and has successfully developed a flow extrusion production line for ETFE and other fluoroplastic films.

Features of the production line:

1. The extruder is made of special high-temperature and corrosion-resistant steel to achieve stable extrusion of fluoroplastics;

2. Cooperate with domestic universities and research institutions in technology, design screw structures and die head structures according to the special characteristics of fluorine materials, and cooperate with special processing techniques such as forming and winding to achieve rational, industrialized, and large-scale production of fluorine plastic products;

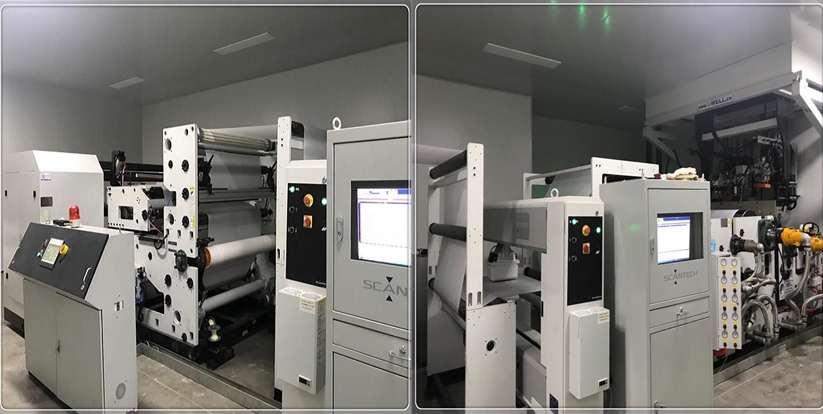

3. Whole machine configuration, practical and reasonable design, PLC touch screen control, whole machine interlocking control, convenient and safe.

Product advantages:

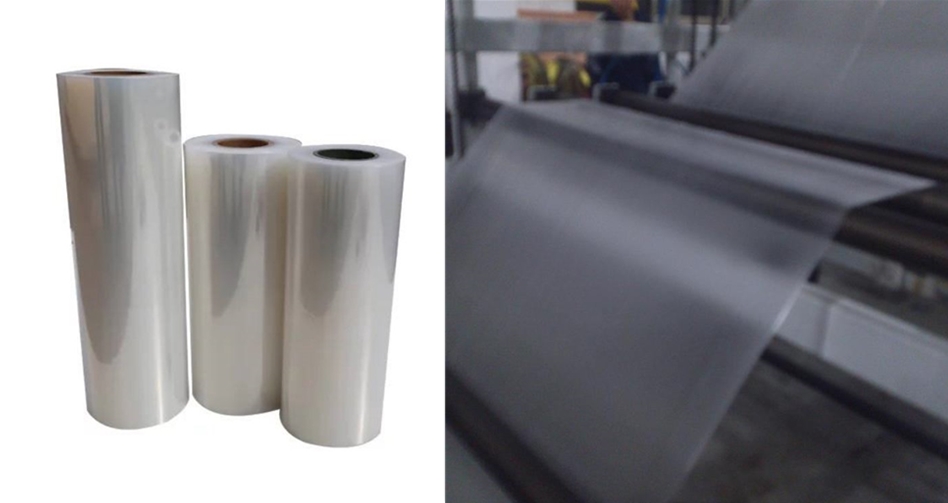

1. The thickness of ETFE fluorine film is generally between 20 and 40 μ m. The width can reach 1300mm, and the production line speed is 8-30m/min. Other specifications can be negotiated and customized;

2. ETFE film is a high-quality alternative material in transparent building structures. Its unique self-cleaning surface makes it highly resistant to dirt and easy to clean. Usually, rainwater can remove the main dirt;

3. ETFE film has the characteristics of anti-aging, corrosion resistance and long service life. The general service life is 25-35 years;

4. The ETFE film is lightweight, has a high fire resistance rating, and will not drip during combustion;

5. The ETFE film has a high transmittance, which can reach over 90%;

6. Environmentally friendly and recyclable: ETFE membranes can be recycled and reused to produce other ETFE products.

Product features:

1. The thickness of ETFE fluorine film is generally between 20 and 40 μ m. The width can reach 1300mm, and the production line speed is 8-30m/min. Other specifications can be negotiated and customized;

2. ETFE film is a high-quality alternative material in transparent building structures. Its unique self-cleaning surface makes it highly resistant to dirt and easy to clean. Usually, rainwater can remove the main dirt;

3. ETFE film has the characteristics of anti-aging, corrosion resistance and long service life. The general service life is 25-35 years;

4. The ETFE film is lightweight, has a high fire resistance rating, and will not drip during combustion;

5. The ETFE film has a high transmittance, which can reach over 90%;

6. Environmentally friendly and recyclable: ETFE membranes can be recycled and reused to produce other ETFE products.

Main uses of the product:

1. The thickness of ETFE film material is usually less than 0.20mm, making it a transparent film material. ETFE membrane materials are used in membrane structures and are often made into air cushions. The early ETFE project has a history of more than 20 years, with the Garden of Eden in the UK as the main venue for the 2008 Beijing Olympics - the swimming pool - using this membrane as the roofing material. The "Water Cube" is a large-scale membrane structure project, with advanced environmentally friendly and energy-saving ETFE (tetrafluoroethylene) membrane materials used on the periphery of the building. ETFE film can not only be used as a film for construction and agriculture, but also for automotive windshield film, anti fouling inner and outer packaging materials, battery separators, adhesive containers, conveyor belts in the food industry, solar receivers, flexible printed circuit boards, computer wires, medical packaging films, etc;

2. ETFE, as a curtain wall or roof material, is a new application field developed in recent years and has been applied in over 100 projects. The main stadium of the 2008 Beijing Olympics, the swimming pool, used ETFE film as the roof material, consisting of 3000 air bags with an area of 110000 square meters. The entire amount of ETFE raw materials used reached 200 tons. But currently, there are no enterprises in China that process high-quality wide ETFE films. After the 2008 Olympics, the usage of ETFE will increase exponentially, pushing the fluoroplastic processing industry towards the mid market.

Specific specifications can be customized according to customer requirements.
