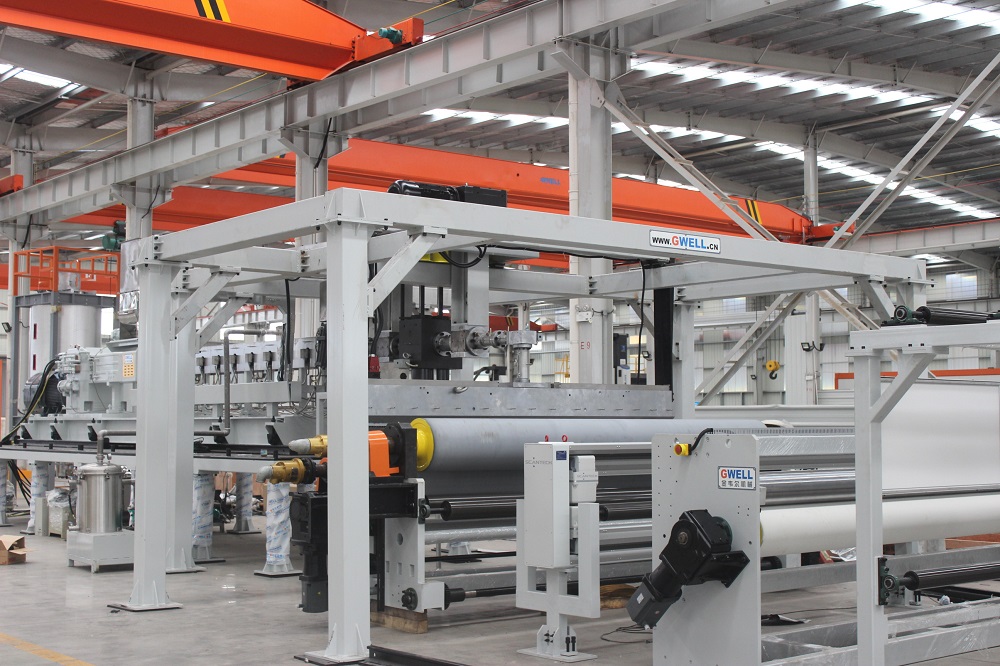

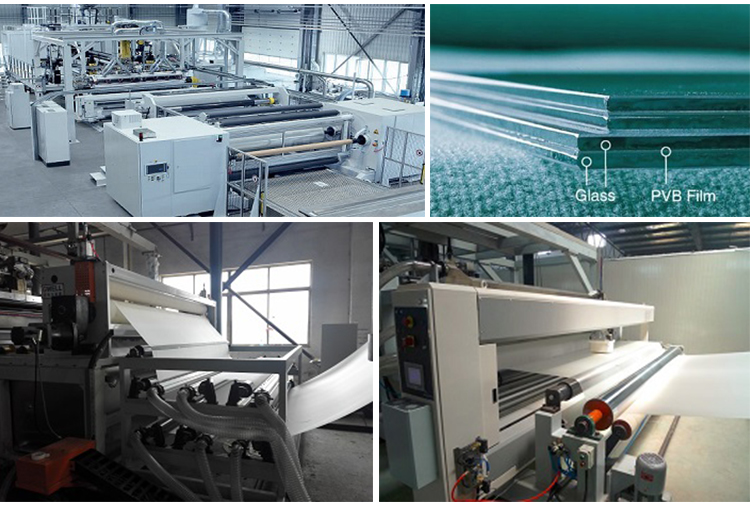

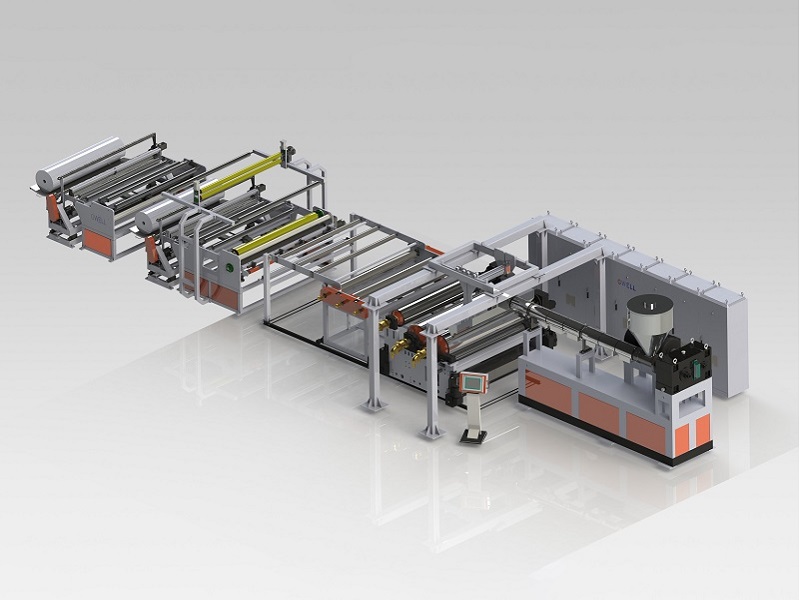

Introduction to PVB Glass Adhesive Film Production Line
PVB film is a semi transparent film that has good adhesion to inorganic glass. It has the characteristics of transparency, heat resistance, cold resistance, and high mechanical strength. It is a bonding material used in the manufacturing of laminated glass. PVB film can absorb impact energy without producing broken pieces. This type of safety glass is widely used in automobiles, high-rise buildings, bank counters, various bulletproof glass, etc. In addition to safety performance, it also has excellent sound insulation, light control, insulation, heat insulation, shock resistance and other properties, making it a high-quality safety glass processing material in the world.
Basic parameters of PVB SGP glass laminated film production line (please consult sales engineer for details)
| Host type | Single screw host GWS150 | Single screw host GWS150/Single screw host GWS90 | Parallel Twin Screw GWP95/Parallel Twin Screw GWP65 |
| Product structure | A | A. A/B, A/B/A | A. A/B, A/B/A |
| Product width | 2800mm | 2800mm | 3600mm |
| Product thickness | 0.38mm -1.52mm | 0.38mm -1.52mm | 0.38mm -1.52mm |
| Maximum production | 400KG/H | 550KG/H | 650KG/H |
The main uses of the PVB film production line are:
1. PVB automotive safety glass adhesive film production line: PVB adhesive film is mainly used for the intermediate layer of automotive windshields
2. PVB building glass intermediate film production line: PVB adhesive film is mainly used for the intermediate layer of high-rise building glass
3. PVB solar film production line: The produced PVB film is used for packaging solar thin film cells
The PVB film production line of Gwell Intelligent Equipment, the top three PVB manufacturers in China, all use Jinweier's PVB dry method (through roll method) and PVB wet method (through water method) film equipment, and the national PVB film production line in India is also manufactured by Jinweier. PVB film width: 3600mm (max), PVB film thickness: 0.38-1.52mm, yield: 500-800kg/h, shrinkage rate: ≤ 2%, total production line length: 28m. The production line can be cut into the required width according to user requirements, and has the following characteristics:
1. Adapt to different types of processing in numerous material systems
2. From feeding to winding, automatic mixing, PLC complete integration, capable of turnkey engineering
3. Large output, low energy consumption, and high degree of automation.
